    £210.00 - £250.00

    What is it?

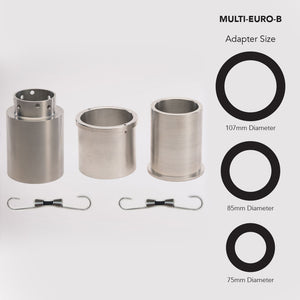

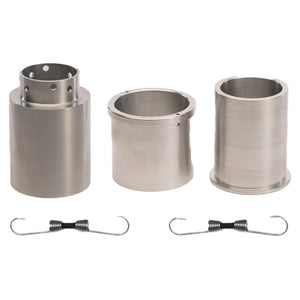

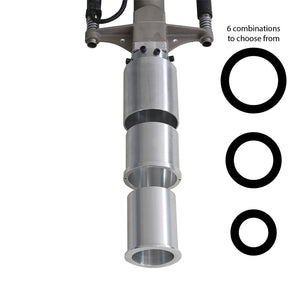

    • The Multi Adapter is a 3-in-1 adapter system. It includes 3 adapter sizes which slot into each other.
    • The 'master' size is the 107mm Round Adapter – affixed to the machine with 8 x bolts and washers (or 2 x bolts and washers on the Max107).
    • Two more adapters slot into the 'master' adapter, and are held in place with a pair of bungees - so you can change our adapter size on-site without the need for bolts or tools.
    • A variety of sizes are available, depending upon your applications.

    Sizes

    MULTI-UK-A: 107mm / 95mm / 78mm
    MULTI-UK-B: 107mm / 78mm / 52mm
    MULTI-UK-C: 107mm / 85mm / 56mm (Clipex Beefy and Standard)
    MULTI-EURO-A: 107mm / 95mm / 85mm
    MULTI-EURO-B: 107mm / 85mm / 75mm
    MULTI-EURO-C: 107mm / 85mm / 65mm
    Customisations available.

    Compatible with the Classic35, Classic50 and Max107 models - select your model before adding to cart.

    What adapter(s) do I need?

    To get the most effective use from the Post Driver, the Adapter size must be a snug fit for your Posts. We recommend the Adapter must be no more than 5-10mm larger than your Post. For shaped posts (squares, t-shapes, etc), the outer corners need to be within this capacity.

    If you are unsure which adapter(s) are right for you, please contact us for advice specific to your application.

    What is the maximum ability of the machine?

    The maximum size post that can be driven in is 4” (100mm) diameter. Our largest adapter is 107mm internal diameter. When the ground is very dry, compacted or stony, you will need to make a pilot hole for posts larger than 78mm. This can be either by hand using a Pilot Bar, or mechanically using our Pilot Core Tool add-on. Posts smaller than 78mm should not need a pilot hole. Ground conditions of clay or chalk may also require a pilot hole.

    Easy Fitting

    Use a 6mm hex key to unscrew the 8 bolts and locking washers (or 2 bolts and locking washers on the Max107). Slide the current Adapter off the base of the Post Driver. Slide the new 'master' 107mm Round Adapter into its place and attach using the same bolts and washers. Remember to use a Locking Compound on the screw threads to stop them vibrating out. Then insert the 2 smaller adapters into the 107mm Round and secure them in place with the bungees provided.
